Intégration mécanique

Important

This section does not concerned the Asycube Clean 230. Please refer to the Integration of Asycube Clean 230 dedicated section.

Pour assurer un bon comportement vibratoire, l’Asycube doit être correctement fixé sur un support spécifiquement défini pour l’application. Une installation incorrecte de l’Asycube pourrait compromettre les performances du produit.

Position de l’Asycube sur le support et caractéristiques du support

The Asycube must be fixed either on a rigid support screwed to the ground or on a « free » heavy support. The Asycube should not be placed on the edge of support. For the second application the mass [M] and the dimensions [AxB] of the support must be large enough to absorb the vibrations generated by the feeder. These mass and dimensions are summarized in Support characteristics.

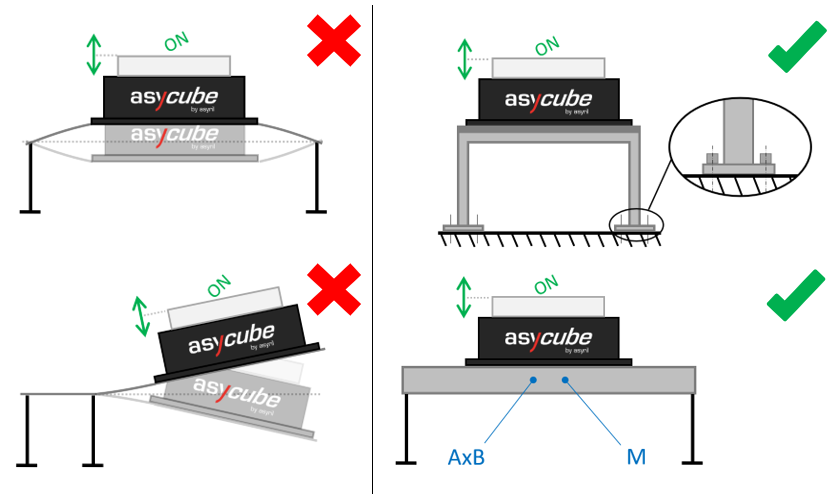

../../../_images/support_characteristics.png

Fixation de l’Asycube sur son support

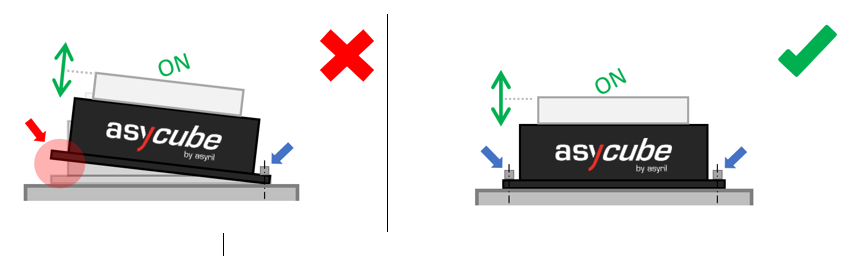

The Asycube must be properly screwed on the support. The quantity of screws necessary to fix the base plate of the Asycube and the screws dimensions are summarized in Screws detail.
