Mounting interfaces
Pour garantir un comportement correct de l’Asycube, il est nécessaire de le fixer fermement à une base solide. Les trous suivants dans la plateforme de base des différents Asycubes peuvent être utilisés pour les fixer mécaniquement.

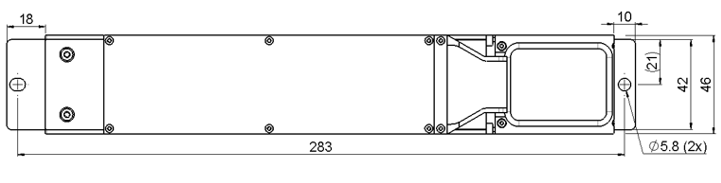

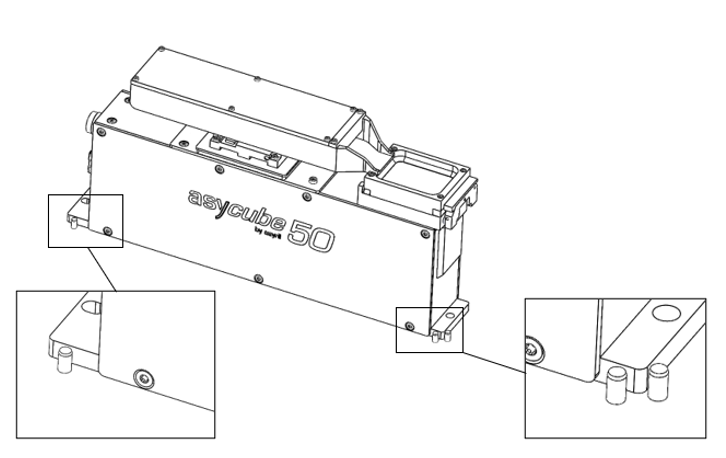

Fig. 15 Mounting interface of the Asycube 50

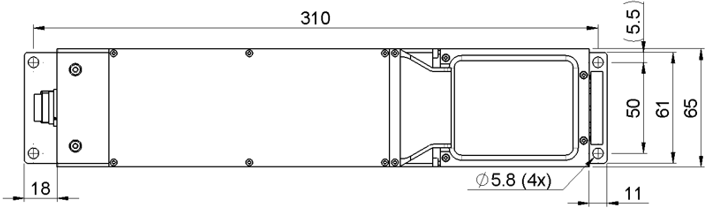

Fig. 16 Mounting interface of the Asycube 80

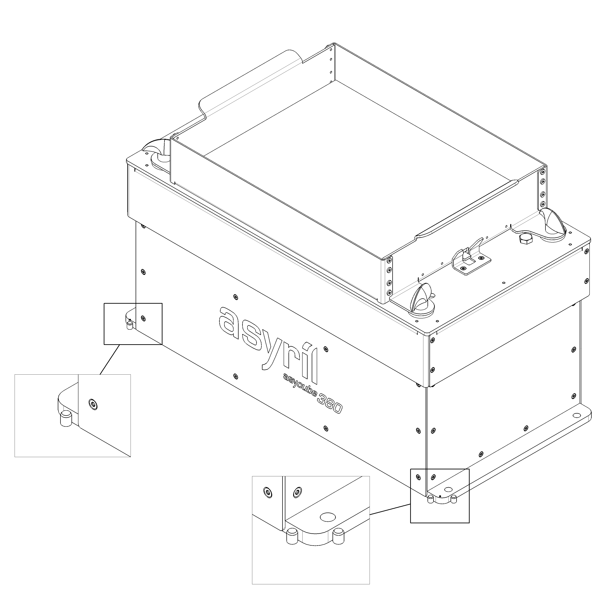

Un positionnement reproductible de l’Asycube peut être obtenu à l’aide de goupilles de positionnement (possibles des deux côtés).
Conseil
Consultez la section Intégration mécanique pour plus d’informations.

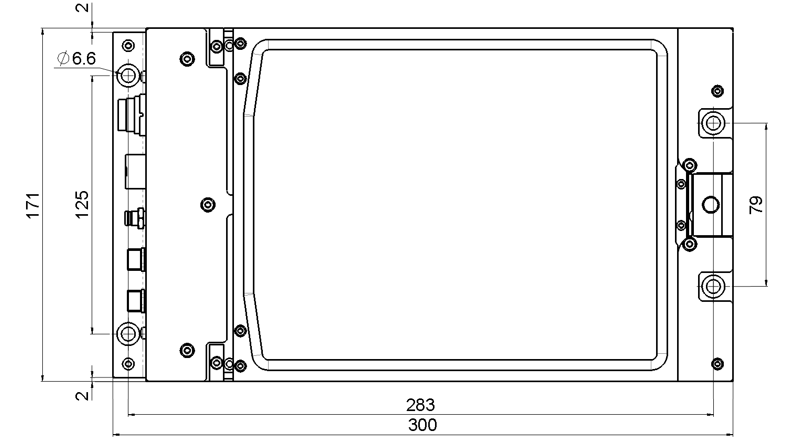

Fig. 17 Mounting interface of the Asycube 240
Un positionnement reproductible de l’Asycube peut être obtenu à l’aide de goupilles de positionnement (possibles des deux côtés).
Conseil
Consultez la section Intégration mécanique pour plus d’informations.

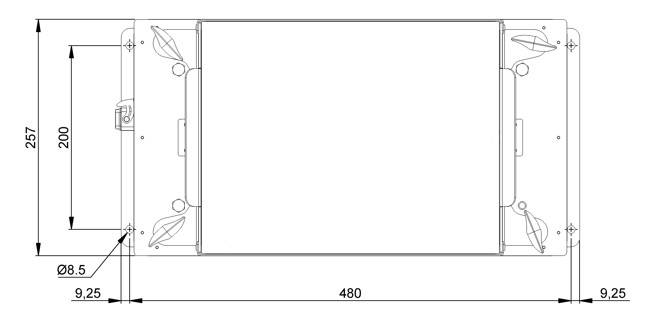

Fig. 18 Mounting interface of the Asycube 380

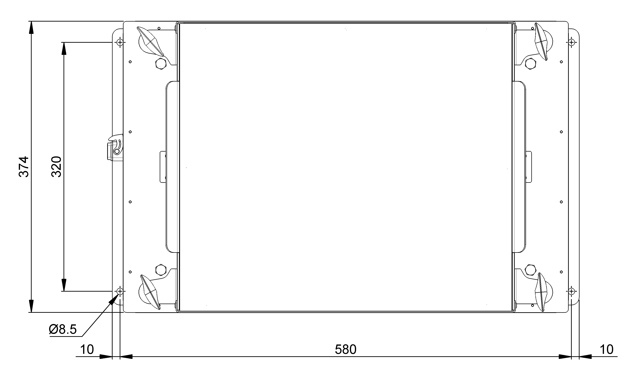

Fig. 19 Mounting interface of the Asycube 530
Un positionnement reproductible de l’Asycube peut être obtenu à l’aide de goupilles de positionnement (possibles des deux côtés).
Conseil
Consultez la section Intégration mécanique pour plus d’informations.

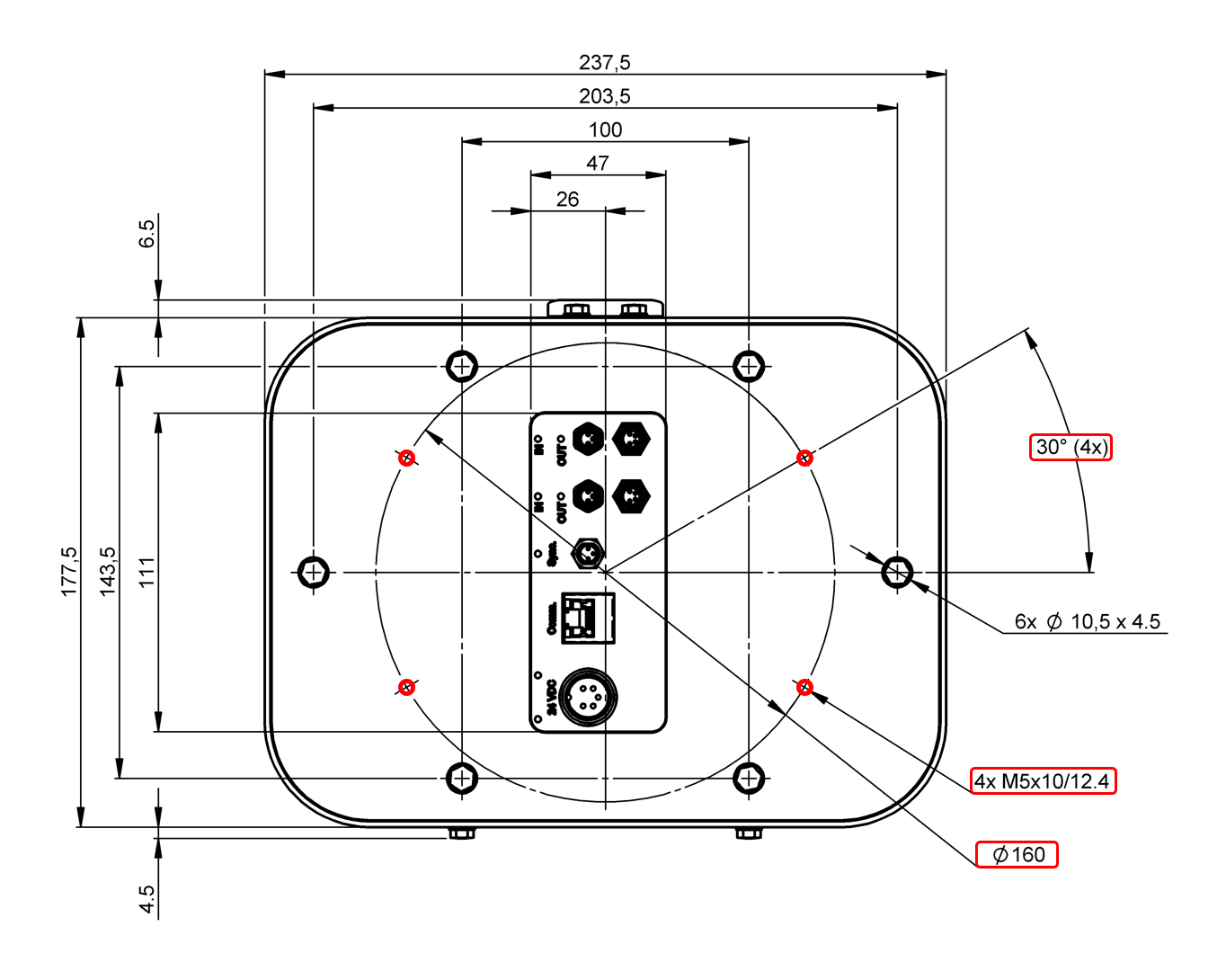

The fixation holes of the Asycube Clean 230 are highlighted in red in Fig. 20
Fig. 20 Mounting interface of the Asycube Clean 230
Important
Do not remove any screws from the Asycube Clean 230, as it is tested by Asyril during production to ensure its IP65 sealing. Ignoring this instruction will void the warranty and may compromise the waterproof integrity of the Asycube, leading to potential damage.
Sealing of the interface panel
Important
The electrical interface panel of the Asycube Clean 230 is not waterproof. To ensure optimal sealing, it is necessary to use a mounting column which must be custom-made by the integrator. The sealing is achieved by using an O-ring. The Fig. 21 illustrates an example.
Important
The drawings of Fig. 22 serve as an example of the design. Asyril is not responsible for any potential damage that may occur due to inadequate sealing at this interface, nor for the design or integration of the product.

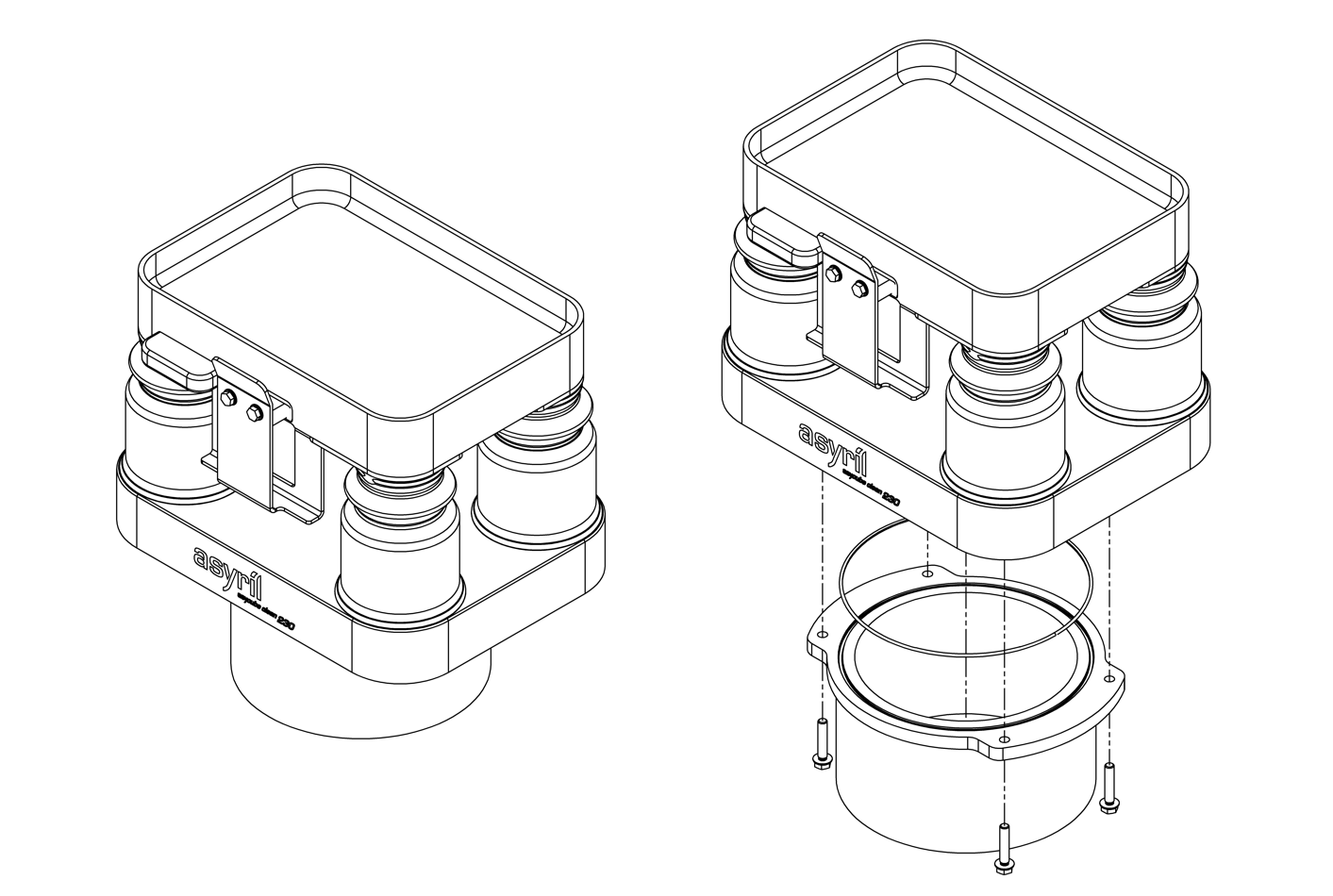

Fig. 21 Asycube Clean 230 mounted on a column with its sealing interface

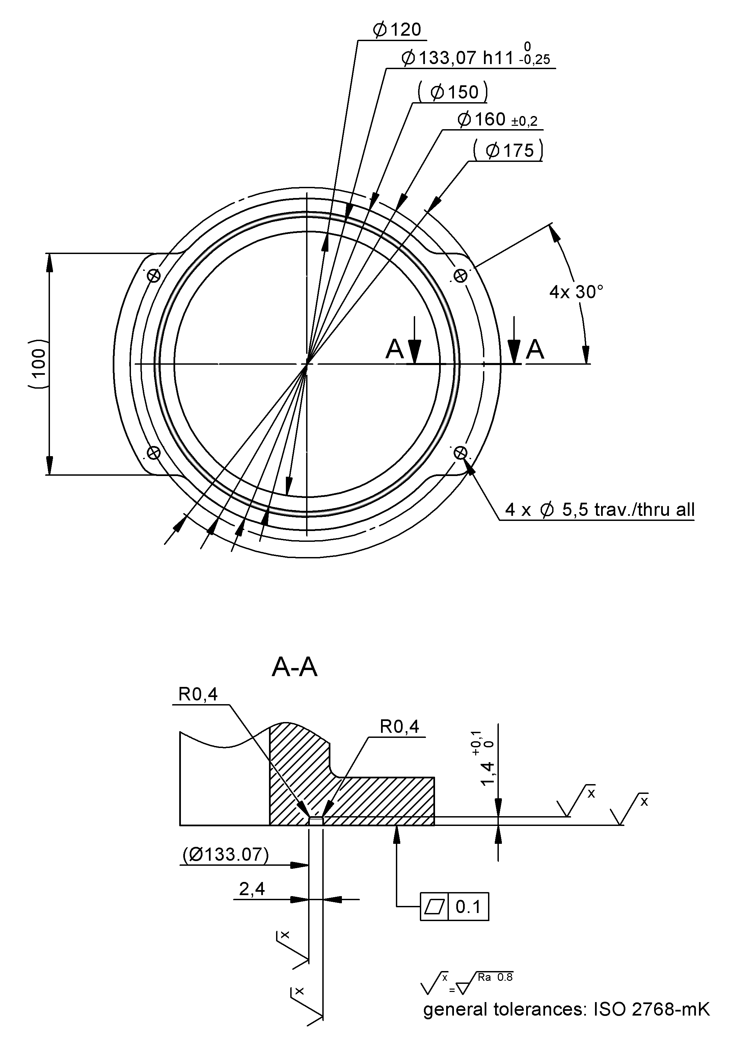

Fig. 22 Asycube Clean 230 - recommended sealing interface
The following O-ring references are suggested:
Reference |
Manufacturer |
Dimensions |
004157 |
Kubo |
ID=133.07mm x d2=1.78mm |
BS050S70FDA |
Eastern Seals |
ID=133.07mm x d2=1.78mm |
Fixation in the machine
The base plate on which the Asycube is mounted must be rigid and weigh at least 50 kg. If the rigidity of the base plate is insufficient, unwanted vibrations will be transmitted to adjacent systems, which may negatively affect the performance of the Asycube and neighboring systems.
If the adjacent components are very sensitive to vibrations, a complete decoupling can be done at the level of the machine’s chassis/structure by using suitable sealing elements (elastomer bellows). This integration is the responsibility of the integrator.
For more information, please contact our support team from our website.
