Function blocks description

FB_Execute_Sequence

Inputs and Outputs description

This function block can be used to trigger the execution of a vibration sequence. This function block also allows to turn ON or OFF the backlight of the Asycube. One instance of this block is used per Asycube.

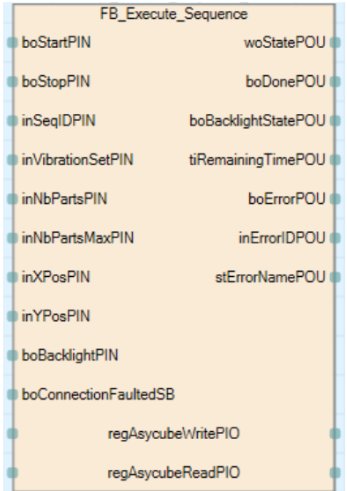

Fig. 158 FB_Execute_Sequence

Tableau 27 Inputs

Variable	Type	Description
boStartPIN	Bit	A rising edge starts the sequence.
boStopPIN	Bit	A rising edge stops the sequence.
		If the system is in Error state, a rising edge clears the error.
inSeqIDPIN	Word [Signed]	Vibration ID (0..25)
inVibrationSetPIN	Word [Signed]	Vibration recipe ID (1..26)
inNbPartsPIN	Word [Signed]	Number of remaining parts currently on the Asycube.
inNbPartsMaxPIN	Word [Signed]	Desired number of parts that you want on the Asycube.
inXPosPIN	Word [Signed]	X Coordinate of the center of mass of the remaining parts (-100..100). Corresponds to 100x the values described in the coordinate system for the center of mass.
inYPosPIN	Word [Signed]	Y Coordinate of the center of mass of the remaining parts (-100..100). Corresponds to 100x the values described in the coordinate system for the center of mass.
boBacklightPIN	Bit	Turns ON and OFF the backlight
boConnectionFaultedSB	Bit	SB type variable. Must be connected to SB006B

Tableau 28 Outputs

Variable	Type	Description
inStatePOU	Word [Signed]	State : 0 = Idle, 1 = Running, 2 = Stopping, 10 = Error
boDonePOU	Bit	A rising edge indicates the end of the sequence
boBacklightStatePOU	Bit	State: TRUE = backlight ON, FALSE = Backlight OFF
tiRemainingTimePOU	Time	Remaining time of the sequence
boErrorPOU	Bit	Goes to TRUE if an error occurred on the block
inErrorIDPOU	Word [Signed]	Error ID (See Error List)
stErrorNamePOU	String	Error Description (See Error List)

Tableau 29 Inputs/Outputs

Variable	Type	Description
regAsycubeWritePIO	Structure	This input must be linked to the GVL structure containing the write registers. See Plugin installation and configuration to import the structure
regAsycubeReadPIO	Structure	This input must be linked to the GVL structure containing the read registers. See Plugin installation and configuration to import the structure

Error List

Tableau 30 FB_Execute_Sequence - Error List

N°	ID	Cause	Resolution
700	Transition error	Input that was activated is not allowed in the current state.	Only use command when you are in the correct state.
701	Modbus error	Refer to Principaux codes d’exception Modbus
702	Internal Modbus error	Refer to Holding Register : codes d’erreur
703	Warning	Refer to Avertissements et alarmes de l’Asycube
704	Alarmes	Refer to Avertissements et alarmes de l’Asycube
705	Gateway disconnected from PLC	Communication problem on the CC-LINK segment	Check the cable between gateway and PLC
706	Asycube disconnected from gateway	Communication problem on the Modbus TCP segment	Check the cable between gateway and Asycube
707	Time out	Connection was lost with the Asycube	Check the cables. Check that the Asycube is supplied. Check the Gateway state.
708	Wrong parameter	Wrong input parameter	Correct the wrong input parameter.
709	-	N/A	-

Remarque

The FB_Execute_Sequence block should not be instantiated simultaneously with the 3 following blocks (i.e. FB_Backlight, FB_Execute_Hopper_Vibration, FB_Execute_Platform_Vibration), otherwise, this would result in a « Communication error ».

FB_Execute_Platform_Vibration

This function block is used to execute a single platform vibration. Standard vibration or centering vibration can be triggered using this block.

Inputs and Outputs description

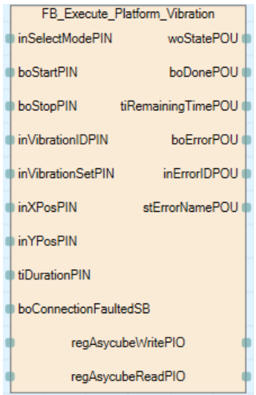

Fig. 159 FB_Execute_Platform_Vibration

Tableau 31 Inputs

Variable	Type	Description
inSelectModePIN	Word [Signed]	Mode: 0 = Standard Vibration, 1 = Centering vibration
boStartPIN	Bit	A rising edge starts the vibration.
boStopPIN	Bit	A rising edge stops the vibration. If the system is in Error state, a rising edge clears the error.
inVibrationIDPIN	Word [Signed]	Vibration ID (0..25)
inVibrationSetPIN	Word [Signed]	Vibration recipe ID (1..26)
inXPosPIN	Word [Signed]	X Coordinate of the center of mass of the remaining parts (-100..100). Corresponds to 100x the values described in the coordinate system for the center of mass. Only if Mode = 1.
inYPosPIN	Word [Signed]	Y Coordinate of the center of mass of the remaining parts (-100..100). Corresponds to 100x the values described in the coordinate system for the center of mass. Only if Mode = 1.
tiDurationPIN	Time	Duration of vibration (0 = unlimited). Only if Mode = 0
boConnectionFaultedSB	Bit	SB type variable. Must be connected to SB006B

Tableau 32 Outputs

Variable	Type	Description
inStatePOU	Word [Signed]	State : 0 = Idle, 1 = Running, 2 = Stopping, 10 = Error
boDonePOU	Bit	A rising edge indicates the end of the sequence
tiRemainingTimePOU	Time	Remaining time of the vibration
boErrorPOU	Bit	Goes to TRUE if an error occurred on the block
inErrorIDPOU	Word [Signed]	Error ID (See Error List)
stErrorNamePOU	String	Error Description (See Error List)

Tableau 33 Inputs/Outputs

Variable	Type	Description
regAsycubeWritePIO	Structure	This input must be linked to the GVL structure containing the write registers. See Plugin installation and configuration to import the structure
regAsycubeReadPIO	Structure	This input must be linked to the GVL structure containing the read registers. See Plugin installation and configuration to import the structure

Error List

Tableau 34 FB_Execute_Platform_Vibration – Error List.

N°	ID	Cause	Resolution
710	Transition error	Input that was activated is not allowed in the current state.	Only use command when you are in the correct state.
711	Modbus error	Refer to Principaux codes d’exception Modbus
712	Internal Modbus error	Refer to Holding Register : codes d’erreur
713	Warning	Refer to Avertissements et alarmes de l’Asycube
714	Alarmes	Refer to Avertissements et alarmes de l’Asycube
715	Gateway disconnected from PLC	Communication problem on the CC-Link segment	Check the cable between gateway and PLC
716	Asycube disconnected from gateway	Communication problem on the Modbus TCP segment	Check the cable between gateway and Asycube
717	Time out	Connection was lost with the Asycube	Check the cables. Check that the Asycube is supplied. Check the Gateway state.
718	Wrong parameter	Wrong input parameter	Correct the wrong input parameter.
719	-	N/A	-

FB_Execute_Hopper_Vibration

This function block is used to execute a single hopper vibration. Standard vibration or Quantity Adjusted vibration can be triggered using this block.

Inputs and Outputs description

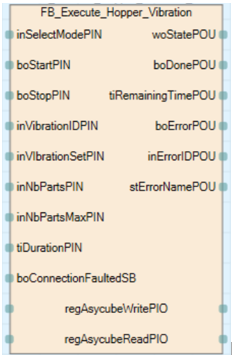

Fig. 160 FB_Execute_Hopper_Vibration

Tableau 35 Inputs

Variable	Type	Description
inSelectModePIN	Word [Signed]	Mode: 0 = Standard Vibration, 1 = Centering vibration
boStartPIN	Bit	A rising edge starts the vibration.
boStopPIN	Bit	A rising edge stops the vibration. If the system is in Error state, a rising edge clears the error.
inVibrationIDPIN	Word [Signed]	Vibration ID (0..25)
inVibrationSetPIN	Word [Signed]	Vibration recipe ID (1..26)
inNbPartsPIN	Word [Signed]	Number of remaining parts currently on the Asycube. Only if Mode = 1
inNbPartsMaxPIN	Word [Signed]	Desired number of parts that you want on the Asycube. Only if Mode = 1.
tiDurationPIN	Time	Duration of vibration (0 = unlimited). Only if Mode = 0
boConnectionFaultedSB	Bit	SB type variable. Must be connected to SB006B

Tableau 36 Outputs

Variable	Type	Description
inStatePOU	Word [Signed]	State : 0 = Idle, 1 = Running, 2 = Stopping, 10 = Error
boDonePOU	Bit	A rising edge indicates the end of the sequence
tiRemainingTimePOU	Time	Remaining time of the vibration
boErrorPOU	Bit	Goes to TRUE if an error occurred on the block
inErrorIDPOU	Word [Signed]	Error ID (See Error List)
stErrorNamePOU	String	Error Description (See Error List)

Tableau 37 Inputs/Outputs

Variable	Type	Description
regAsycubeWritePIO	Structure	This input must be linked to the GVL structure containing the write registers. See Plugin installation and configuration to import the structure
regAsycubeReadPIO	Structure	This input must be linked to the GVL structure containing the read registers. See Plugin installation and configuration to import the structure

Error List

Tableau 38 FB_Execute_Platform_Vibration – Error List.

N°	ID	Cause	Resolution
720	Transition error	Input that was activated is not allowed in the current state.	Only use command when you are in the correct state.
721	Modbus error	Refer to Principaux codes d’exception Modbus
722	Internal Modbus error	Refer to Holding Register : codes d’erreur
723	Warning	Refer to Avertissements et alarmes de l’Asycube
724	Alarmes	Refer to Avertissements et alarmes de l’Asycube
725	Gateway disconnected from PLC	Communication problem on the CC-Link segment	Check the cable between gateway and PLC
726	Asycube disconnected from gateway	Communication problem on the Modbus TCP segment	Check the cable between gateway and Asycube
727	Time out	Connection was lost with the Asycube	Check the cables. Check that the Asycube is supplied. Check the Gateway state.
728	Wrong parameter	Wrong input parameter	Correct the wrong input parameter.
729	-	N/A	-

FB_Backlight

This function block is used to control the backlight. Backlight can be controlled in continuous or in flash mode.

Inputs and Outputs description

Fig. 161 FB_Backlight

Tableau 39 Inputs

Variable	Type	Description
boLightONPIN	Bit	A rising edge turns ON the backlight
boLightOFFPIN	Bit	A rising edge turns OFF the backlight If the system is in Error state, a rising edge clears the error.
tiDurationPIN	Time	Duration of the backlight. If 0, backlight turns OFF only if boLightOFFPIN is activated.
boConnectionFaultedSB	Bit	SB type variable. Must be connected to SB006B

Tableau 40 Outputs

Variable	Type	Description
inStatePOU	Word [Signed]	State: 0 = IDLE, 1 = Running, 2 = Stopping, 10 = Error
tiRemainingTimePOU	Time	Remaining time of backlight. If tiDurationPIN ≠ 0.
boErrorPOU	Bit	Goes to TRUE if an error occurred on the block
inErrorIDPOU	Word [Signed]	Error ID (See Error List)
stErrorNamePOU	String	Error Description (See Error List)

Tableau 41 Inputs/Outputs

Variable	Type	Description
regAsycubeWritePIO	Structure	This input must be linked to the GVL structure containing the write registers. See Plugin installation and configuration to import the structure
regAsycubeReadPIO	Structure	This input must be linked to the GVL structure containing the read registers. See Plugin installation and configuration to import the structure

Error List

Tableau 42 FB_Backlight - Error List

N°	ID	Cause	Resolution
730	Transition error	Input that was activated is not allowed in the current state.	Only use command when you are in the correct state.
731	Modbus error	Refer to Principaux codes d’exception Modbus
732	Internal Modbus error	Refer to Holding Register : codes d’erreur
733	Warning	Refer to Avertissements et alarmes de l’Asycube
734	Alarmes	Refer to Avertissements et alarmes de l’Asycube
735	Gateway disconnected from PLC	Communication problem on the CC-Link segment	Check the cable between gateway and PLC
736	Asycube disconnected from gateway	Communication problem on the Modbus TCP segment	Check the cable between gateway and Asycube
737	Time out	Connection was lost with the Asycube	Check the cables. Check that the Asycube is supplied. Check the Gateway state.
739	-	N/A	-
