機械的インテグレーション

重要

This section does not concerned the Asycube Clean 230. Please refer to the Integration of Asycube Clean 230 dedicated section.

良好な振動挙動を確保するために、用途に応じて定義されたサポートにアジキューブを正しく固定してください。アジキューブを正しく取り付けていないと、製品の性能が損なわれる可能性があります。

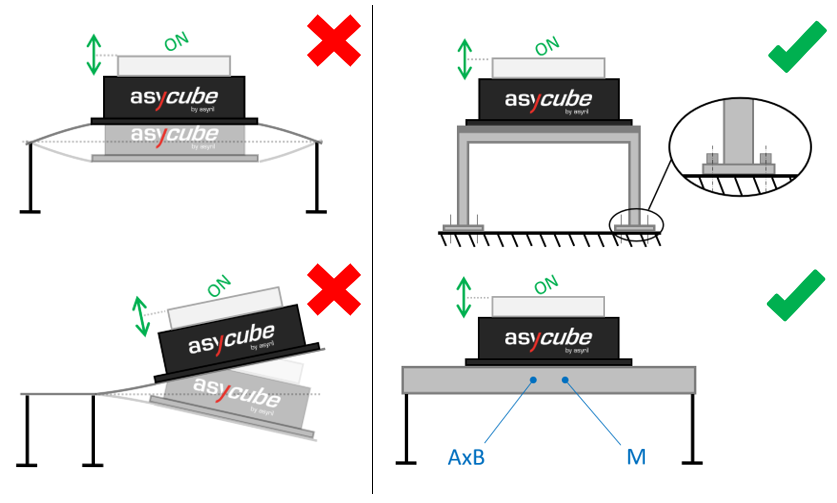

サポートおよびサポート特性に関するアジキューブの位置付け

The Asycube must be fixed either on a rigid support screwed to the ground or on a "free" heavy support. The Asycube should not be placed on the edge of support. For the second application the mass [M] and the dimensions [AxB] of the support must be large enough to absorb the vibrations generated by the feeder. These mass and dimensions are summarized in Support characteristics.

../../../_images/support_characteristics.png

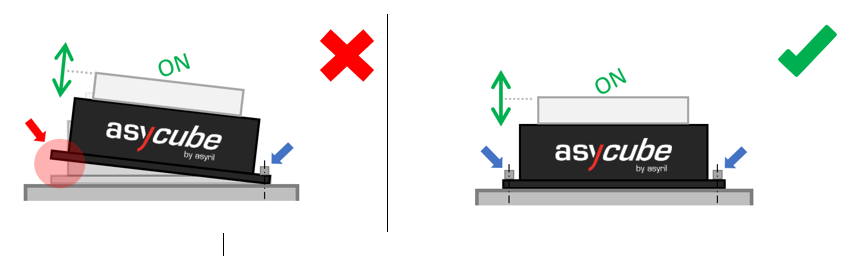

アジキューブをサポートに固定する

The Asycube must be properly screwed on the support. The quantity of screws necessary to fix the base plate of the Asycube and the screws dimensions are summarized in Screws detail.

../../../_images/fixing_asycube.png
