Hoppers for Asycube 50 and 80

Mounting

The hopper can be mounted easily onto the Asycube without the need of a specific tool. No specific cabling is required as the hopper actuator is already embedded in the Asycube 50 and 80 housing.

Hopper variants

Asyril offer the following optional hopper sizes and material:

	Asycube 50		Asycube 80
Hopper size	10 cm3	110 cm3	160 cm3
Maximum hopper weight (empty)	400 g	400 g	400 g
Maximum parts weight (in addition to hopper weight)	400 g	400 g	400 g

These hoppers are available in two materials:

anodized aluminum
stainless steel (316L, 1.4435) for applications requiring FDA or medical grade material.

Additional options

Hopper height adapter kit

When a thicker plate is to be designed, the hopper height can be increased by a value HA by using the optional HOPPER HEIGHT ADAPTER - 50/80. HA max = 7.5mm.

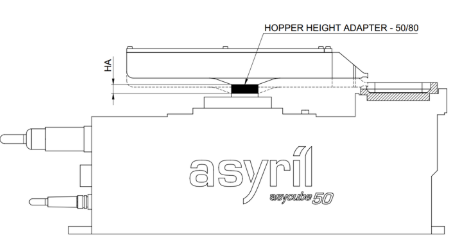

../../_images/hopper_height_adaptater_50_80_1.png — Fig. 65 HOPPER HEIGHT ADAPTER - 50/80. HA max = 7.5mm

The hopper height adapter kit includes:

3x 0.5mm shims
3x 2.0mm shims
screws

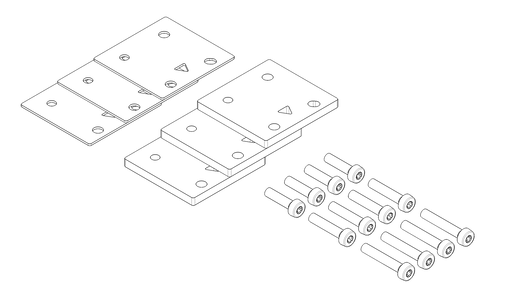

../../_images/hopper_fix_kit_50_80.png — Fig. 66 Content of hopper height adapter kit

Hopper fixation kit

For customers wishing to design and use their own hopper (different from Asyril’s standard options), it is possible to use the following fixing kit.

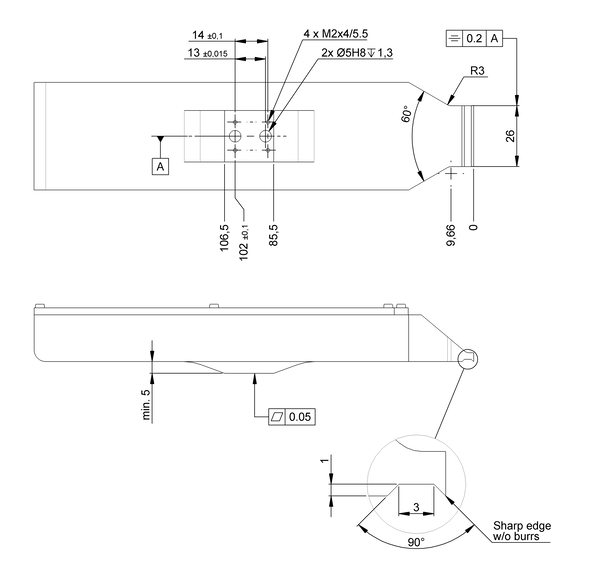

../../_images/hopper_fix_kit_50_80_2.png — Fig. 67 Hopper fixation kit
