Overall dimensions

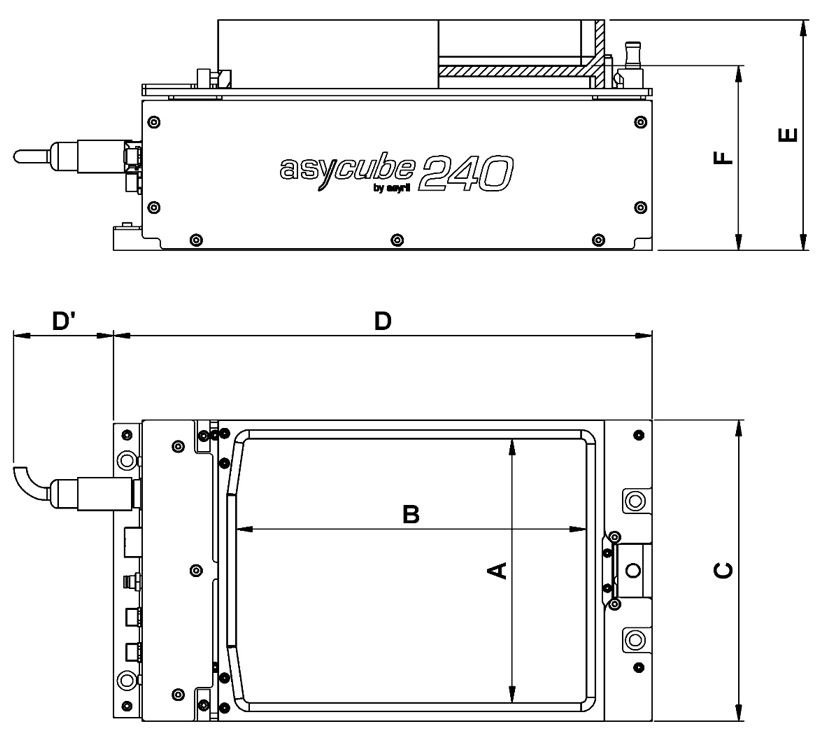

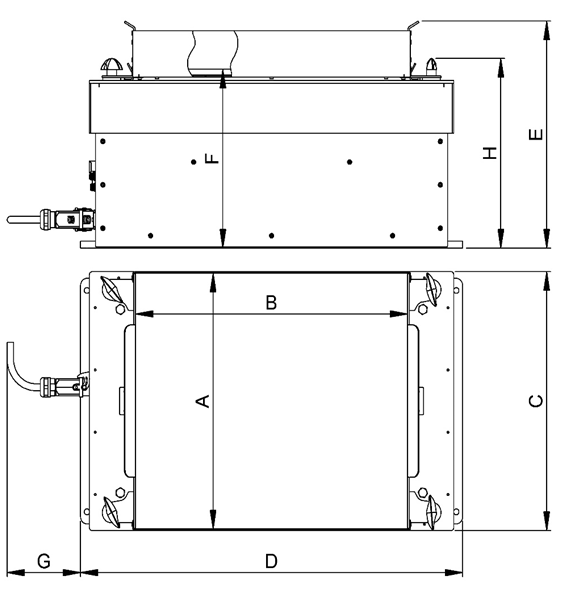

Asycube 50/80Asycube 240Asycube 380/530Asycube Clean 230

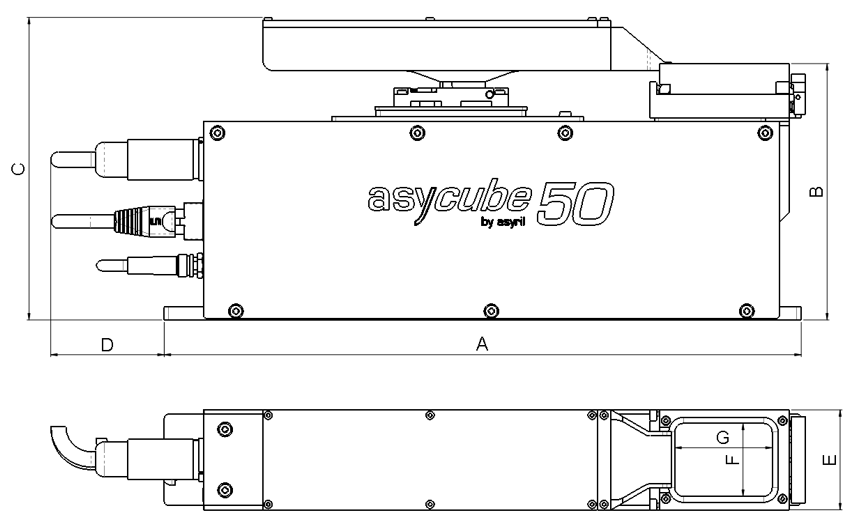

Fig. 8 Overall dimensions Asycube 50 and 80

Characteristics		Asycube 50	Asycube 80
Footprint	A	293 mm	320 mm
	E	46 mm	65 mm
Platform height	B	118 mm	119 mm
Total height	C	140 mm	140 mm
Cables	D	50 mm	50 mm
Size of vibration platform	F	34 mm	52 mm
	G	45 mm	65 mm
Weight		3.1 kg	3.7 kg

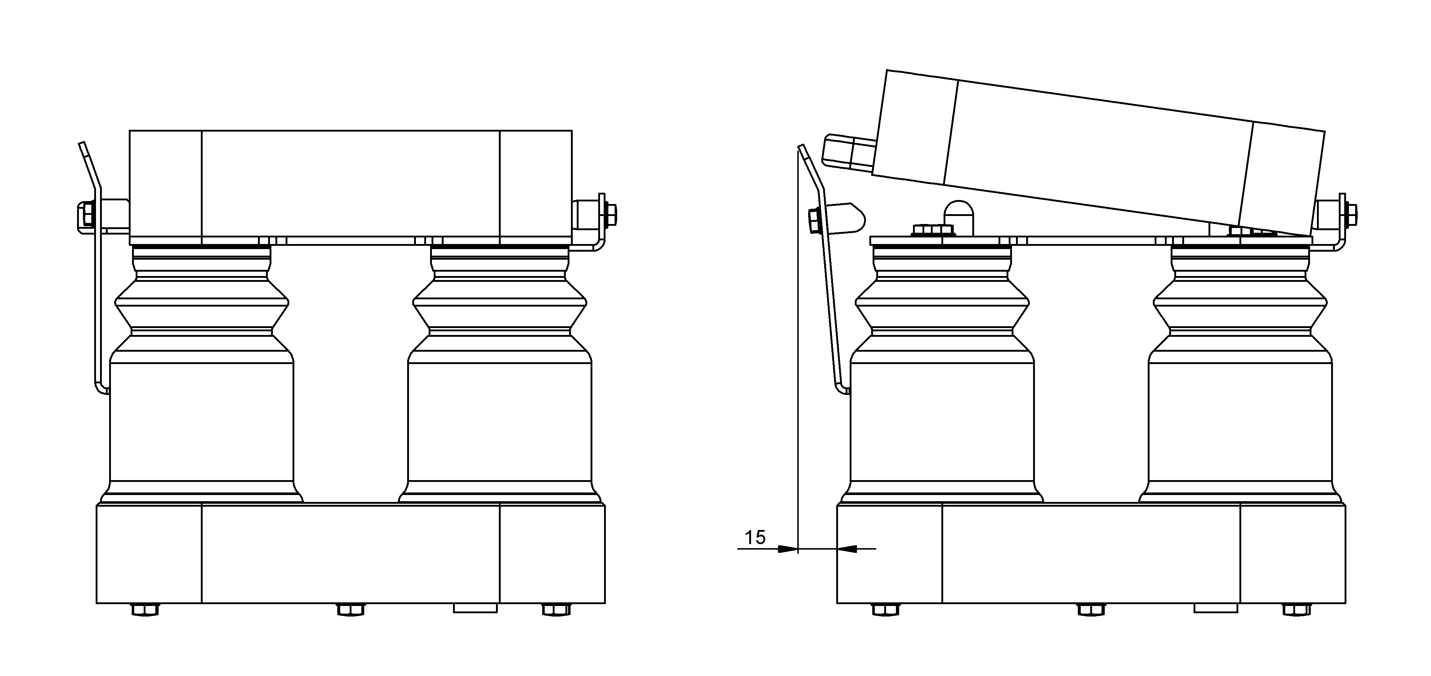

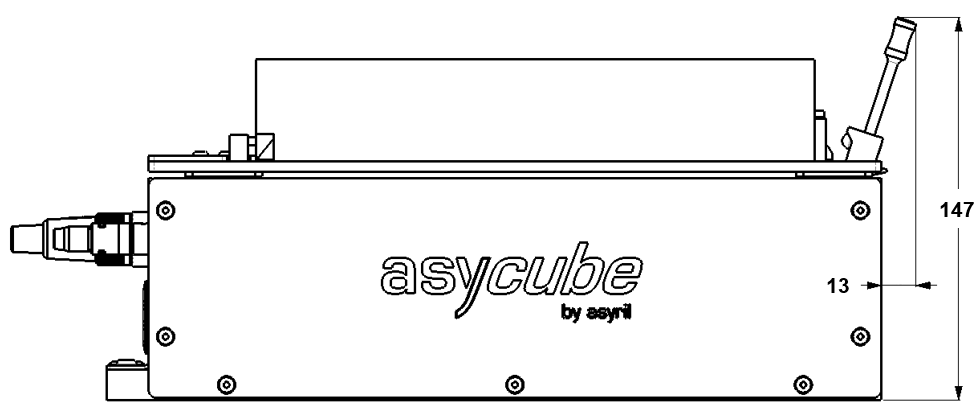

Additional space is needed around the Asycube to be able to remove the platform module with the integrated tool :

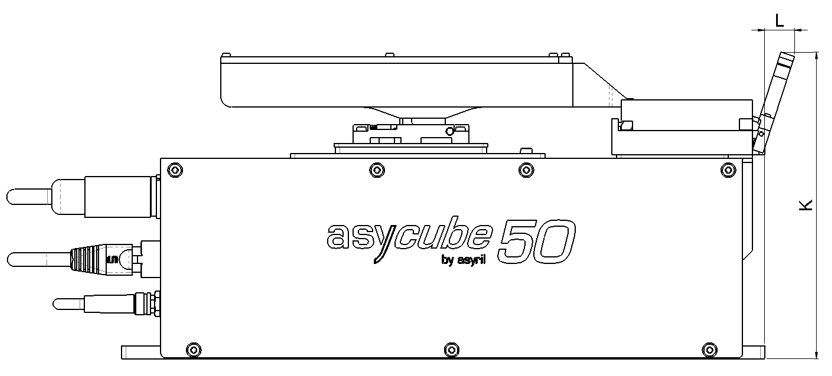

Fig. 9 Overall dimensions with “lever”

Characteristics		Asycube 50	Asycube 80
Lever footprint	K	140 mm	140 mm
	L	15 mm	12 mm

Note

Refer to Remove the platform module for more information on how to remove the platform.
